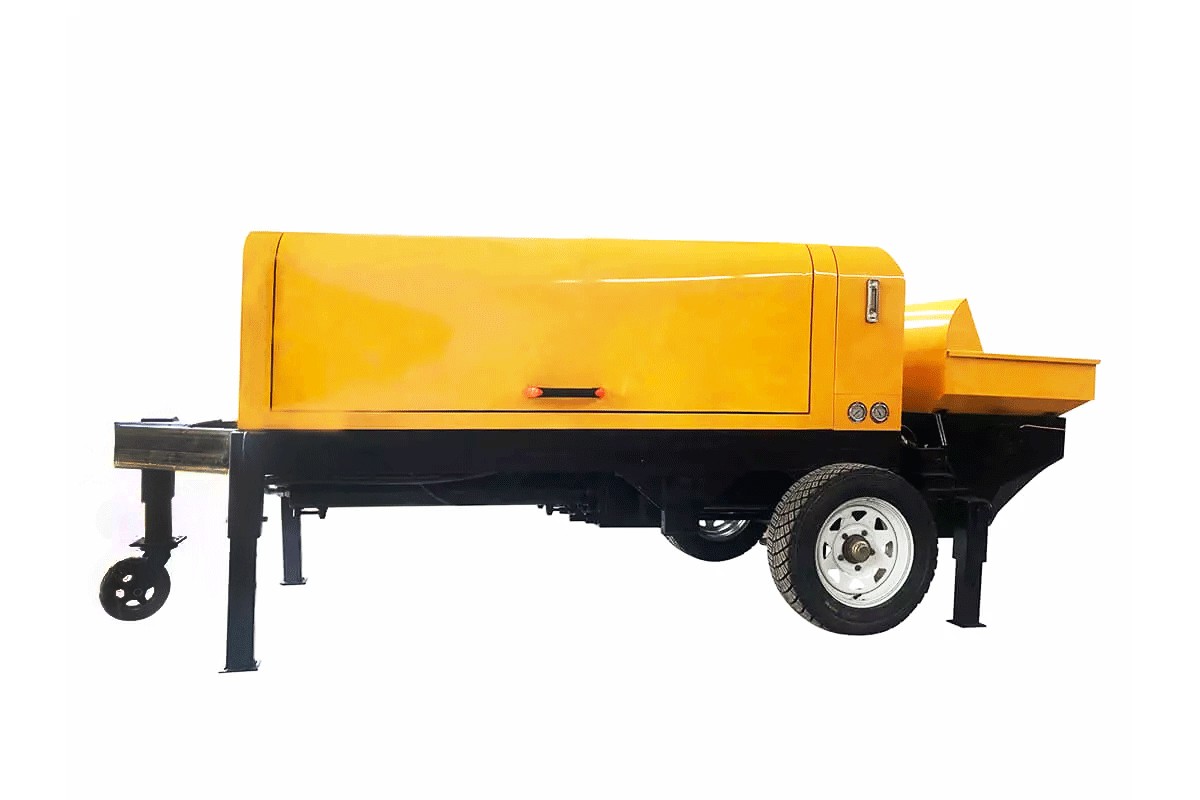

HW40-55 Concrete Pump
Rated Power: 50Kw
Aggregate size: 40mm
Output: 40m³/h
Aggregate size: 40mm
Output: 40m³/h
Product Details
1. HW40-50 concrete pump is light in weight, equipped with walking wheels,convenient to move and unique in design.
2. Easy movement and positioning, smooth operation, simple operation, long service life.
3. Pump delivery system is 20 times of manual construction, saving time and labor costs, improve labor productivity.
4. Can be placed directly on the floor site pouring, and not by pumping height limit.
Model | HW40-55 |
Power | 50kw |
Voltage | 380V |
Vertical delivery distance | 100m |
Horizontal delivery distance | 200m |
Output | 40m3/h |
Max.Aggregate size | 40mm |
Outlet diameter | 180mm |
Cylinder stroke | 1500mm |
Pipe diameter | 150mm |
Dimension | 4500*1800*1700mm |
Weight | 3200kg |
