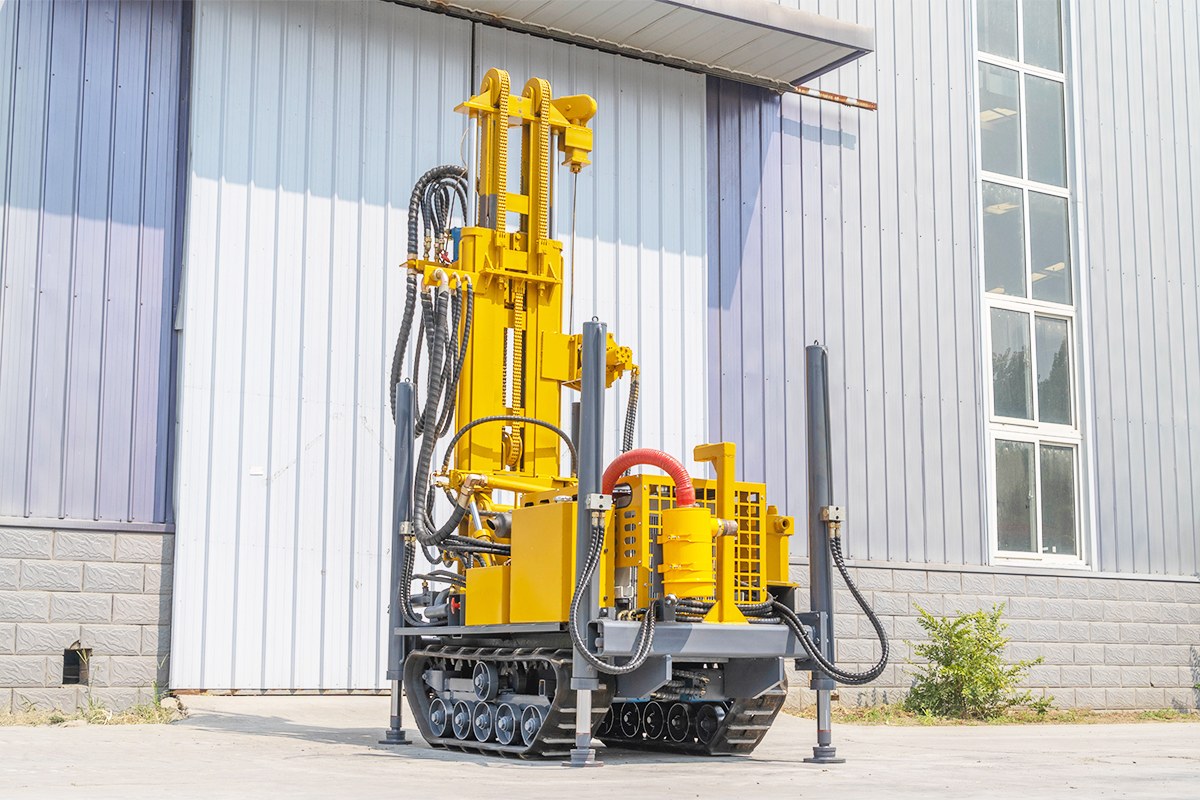

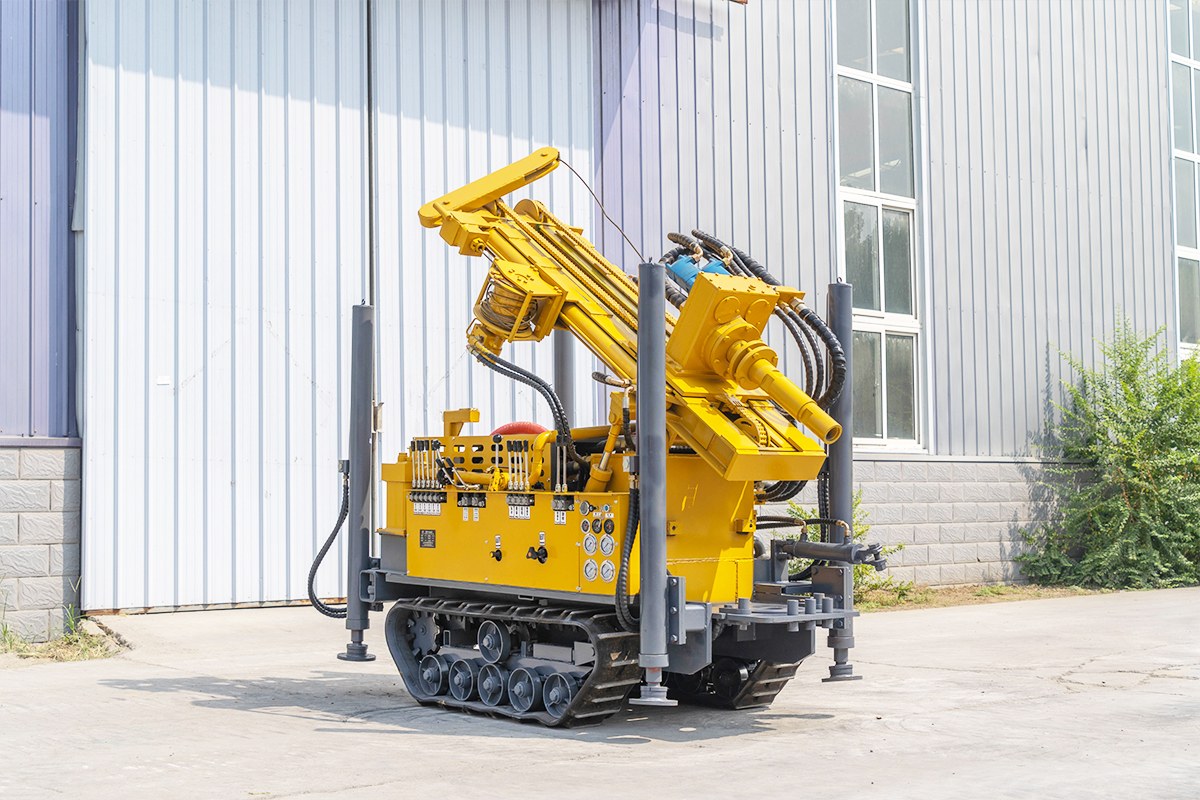

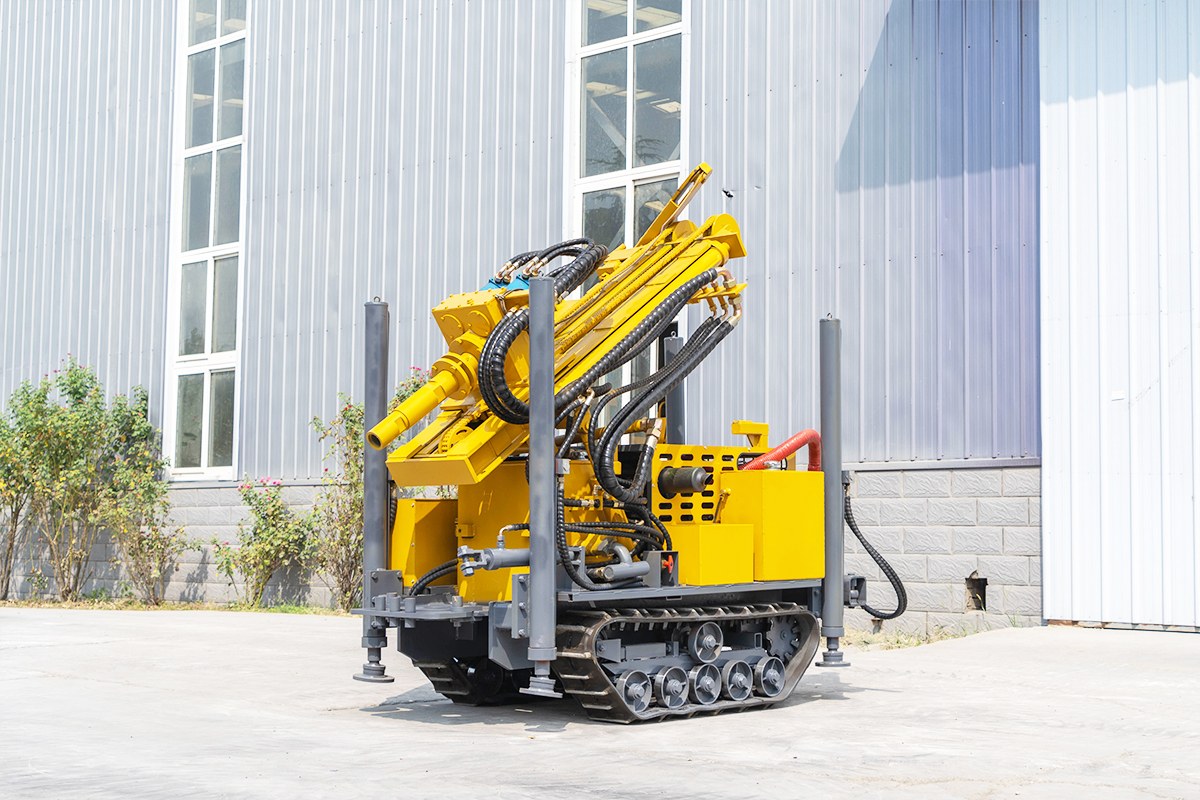

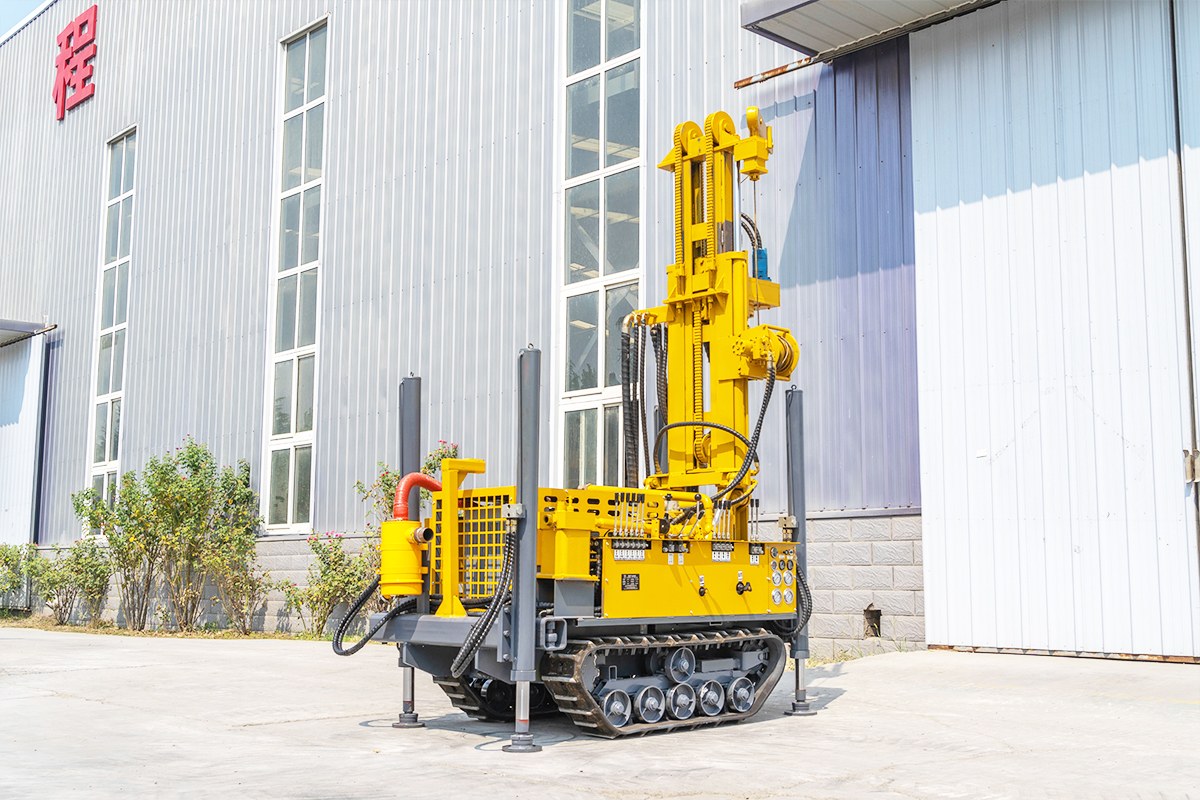

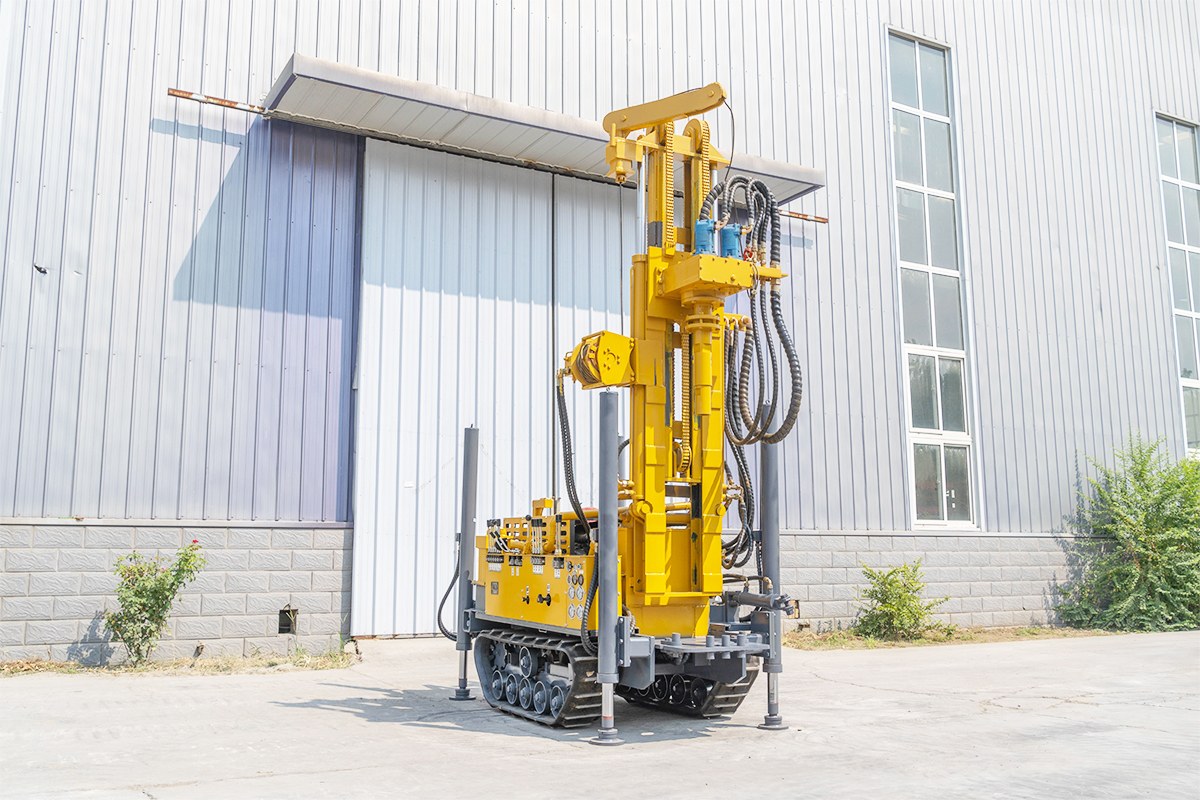

HQZ-160L Pneumatic Drill Rig
Drilling depth: 160m
Drilling diameter: 138-203mm
Main motor power: 73Kw
Drilling diameter: 138-203mm
Main motor power: 73Kw
Product Details
Industrial Pneumatic Drilling Rig - High-Efficiency Bored Piling & Rock Drilling Equipment
Boost productivity with our heavy-duty pneumatic drilling rig. Features millimeter-level precision, wireless remote control, and all-terrain adaptability. Low energy consumption. Get a free quote now!
>>> Product Details <<<
| model | HQZ-160L | |
| tower | 2 | m |
| Chassis | Rubber track | / |
| Drilling diameter | 138-203 | mm |
| Drilling depth | 160 | m |
| One-time advancement length | 2 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 73 | kw |
| working pressure | / | mpa |
| Air consumption | / | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.0/1.5/2.0 | m |
| Lifting power | 12 | T |
| Swing speed | 50-110 | rpm |
| Rotating torque | 7800 | N.m |
| Dimensions | 2300*1200*1900 | mm |
| weight | 2.6 | T |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
