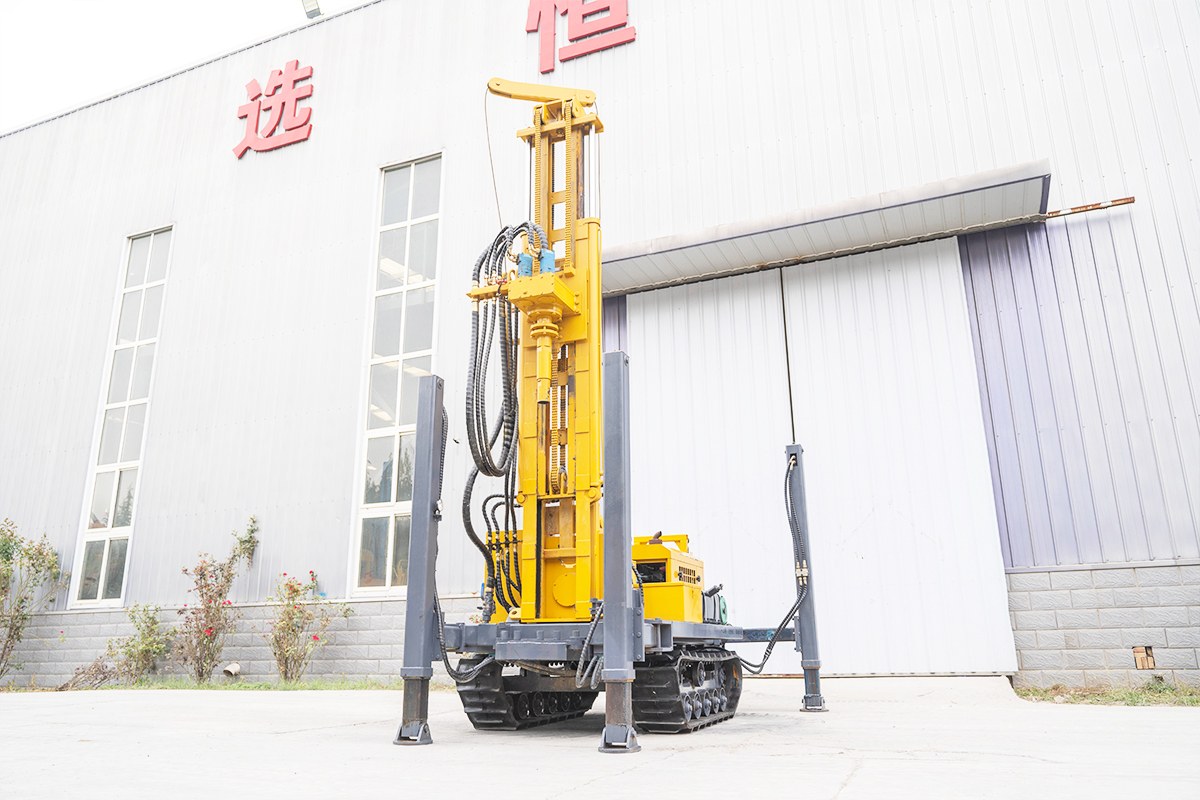

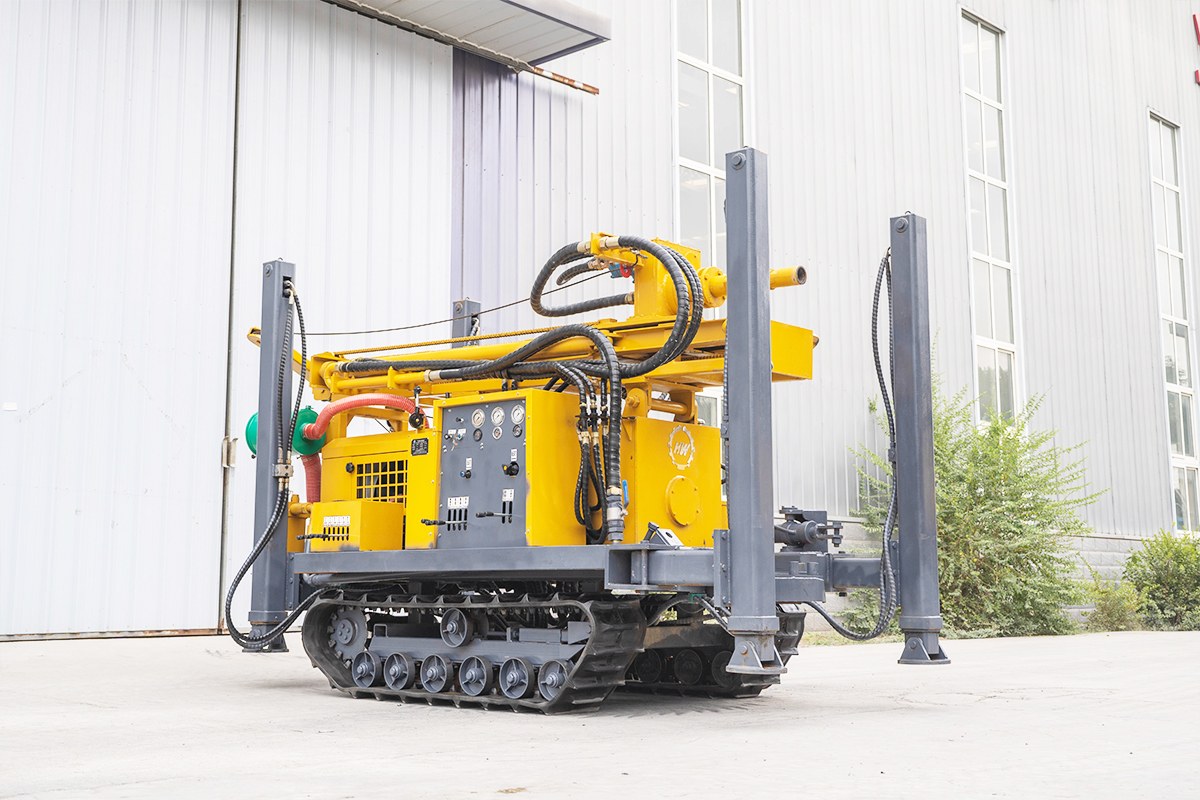

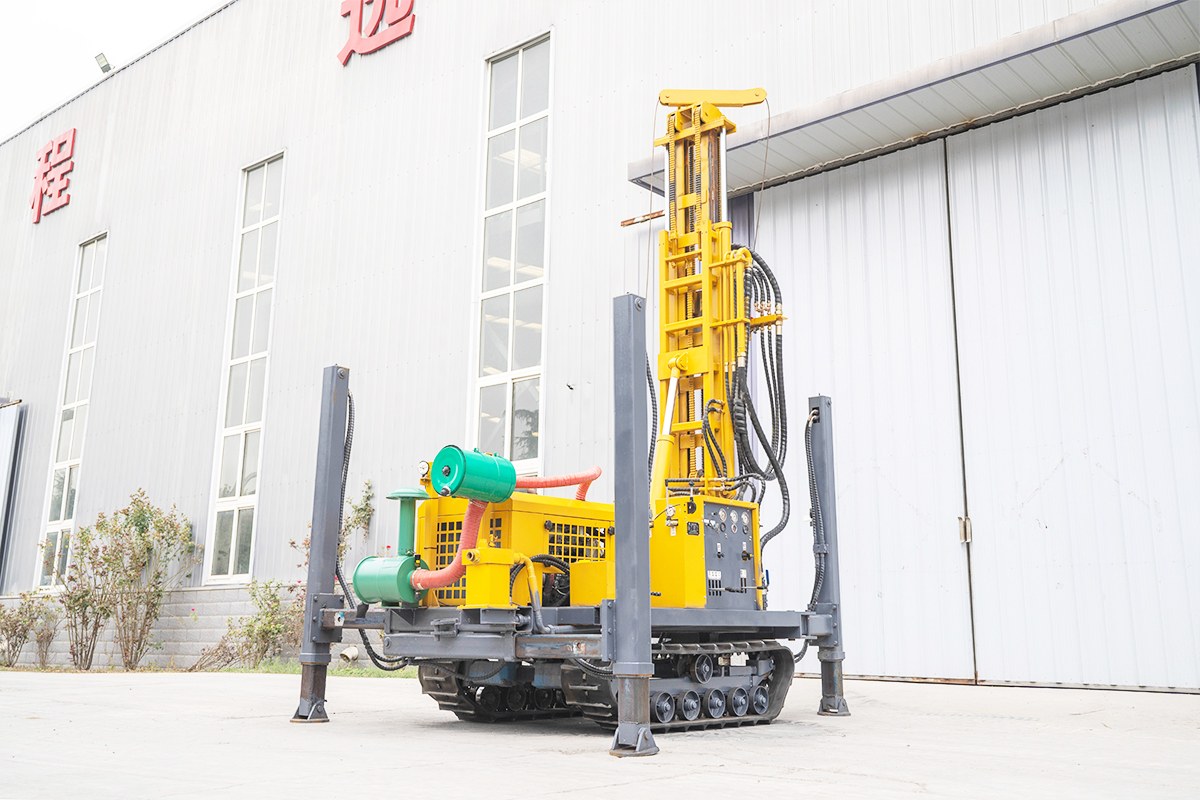

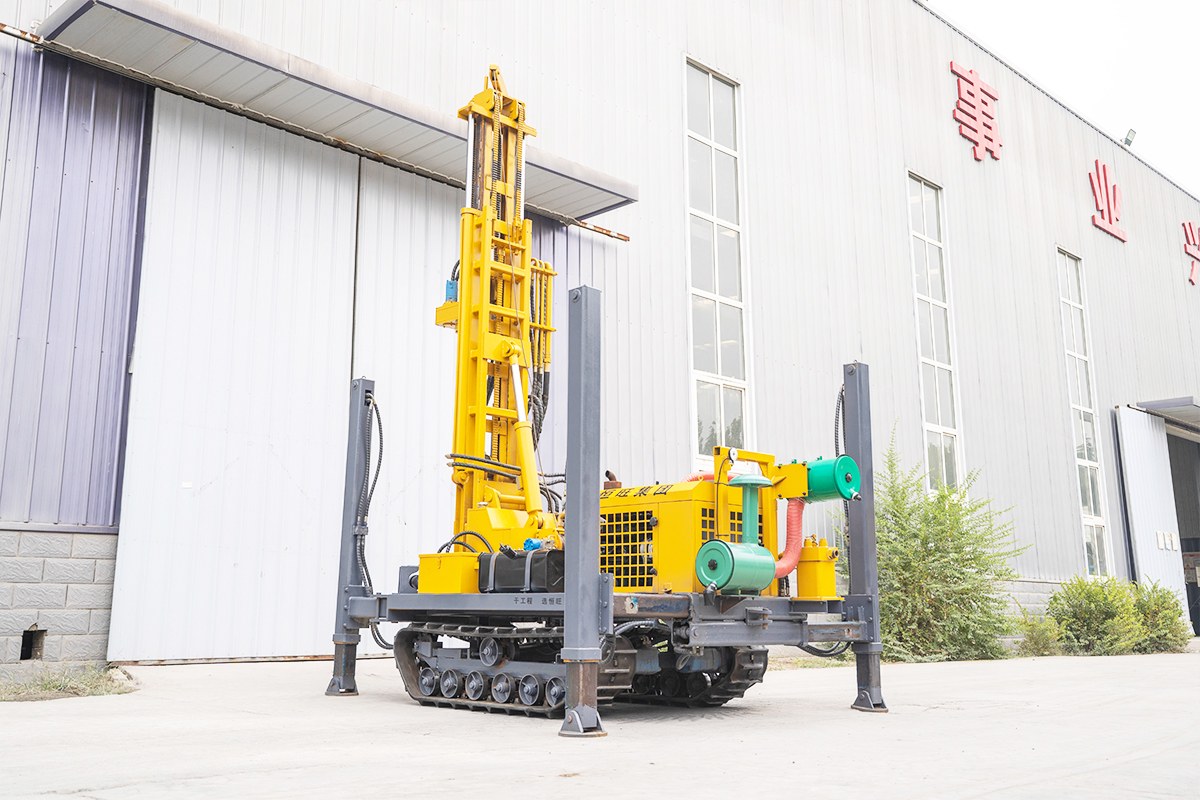

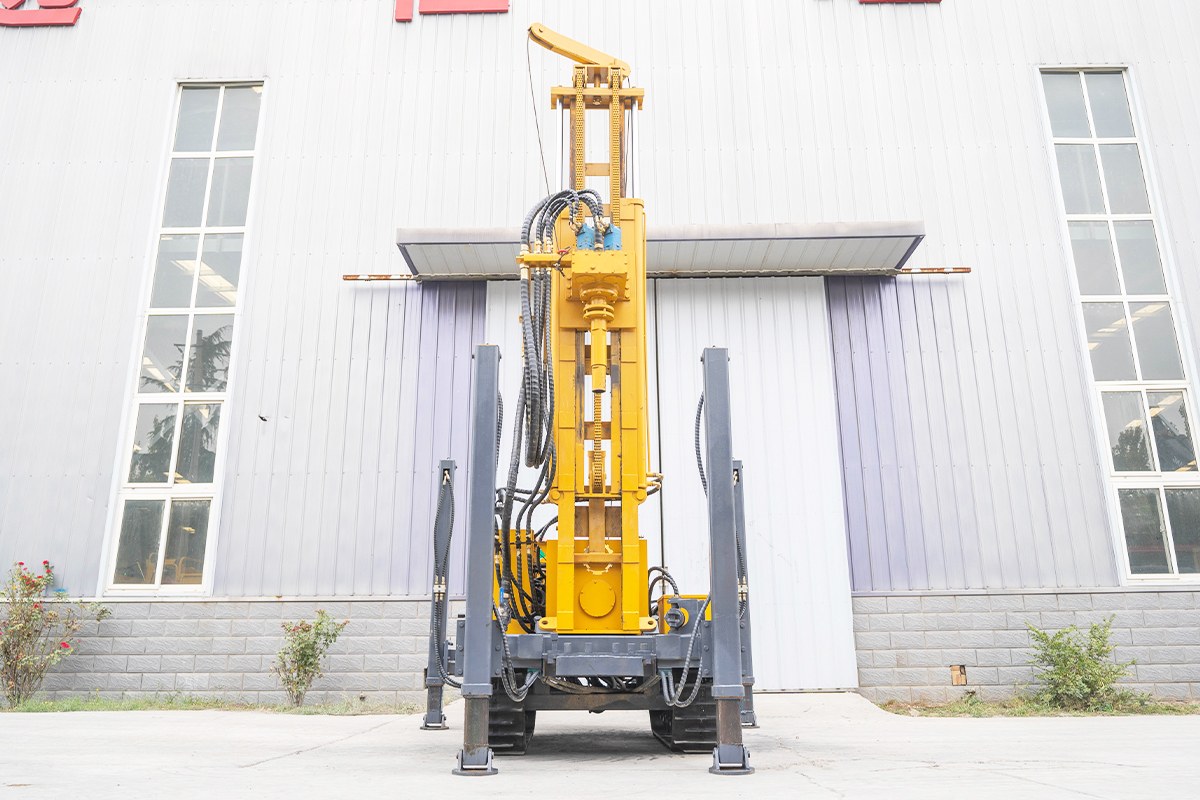

HQZ-220L Pneumatic Drill Rig
Drilling depth: 220m
Drilling diameter: 130-254mm
Engine Power: 60Kw
Drilling diameter: 130-254mm
Engine Power: 60Kw
Product Details
Industrial Pneumatic Drilling Rig - High-Efficiency Bored Piling & Rock Drilling Equipment
Boost productivity with our heavy-duty pneumatic drilling rig. Features millimeter-level precision, wireless remote control, and all-terrain adaptability. Low energy consumption. Get a free quote now!
| model | HQZ-220L | |
| tower | 3 | m |
| Chassis | Rubber track / Steel track | / |
| Drilling diameter | 130-254 | mm |
| Drilling depth | 220 | m |
| One-time advancement length | 3.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yunnei | / |
| Engine power | 60 | kw |
| working pressure | 1.45-2.5 | mpa |
| Air consumption | 17-31 | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.5/2.0/3.0 | m |
| Lifting power | 15 | T |
| Swing speed | 45-65 | rpm |
| Rotating torque | 4000-4600 | N.m |
| Dimensions | 3500*1700*2250 / 3800*1700*2250 | mm |
| weight | 4.5 / 5 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
Submit the form to get the latest parameters and quotes.
