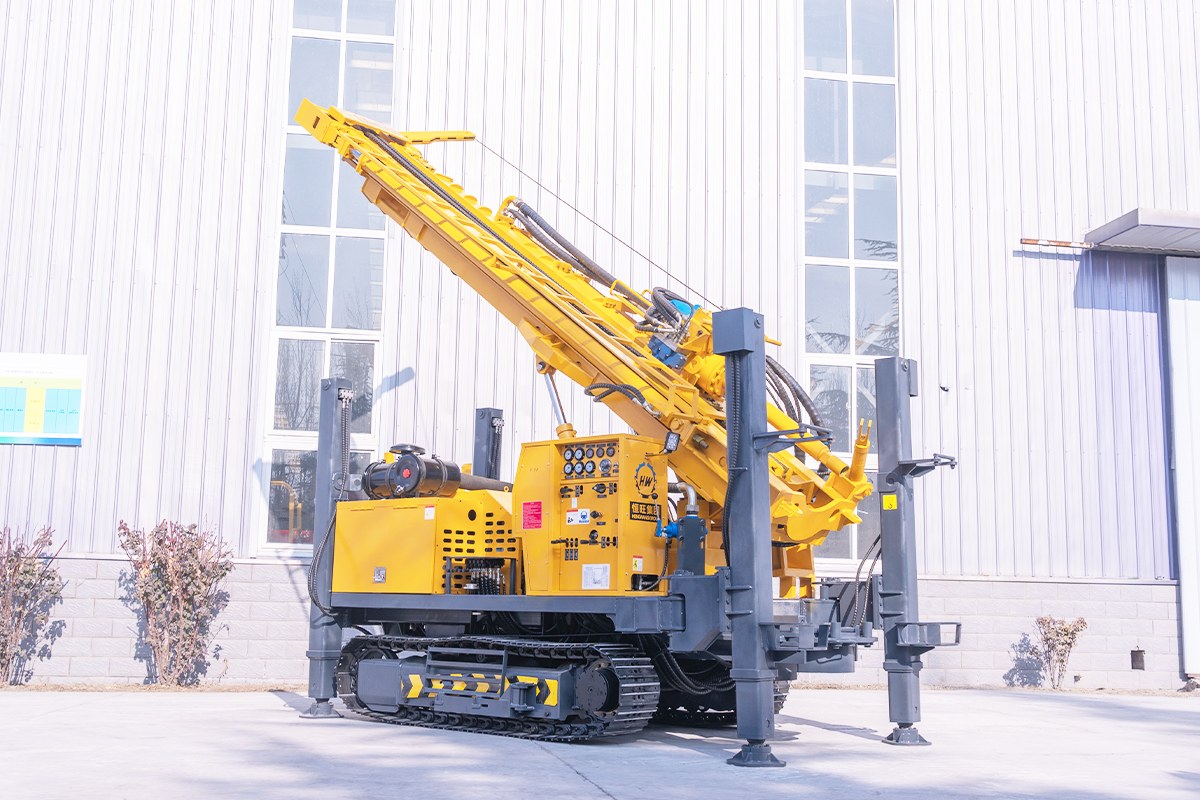

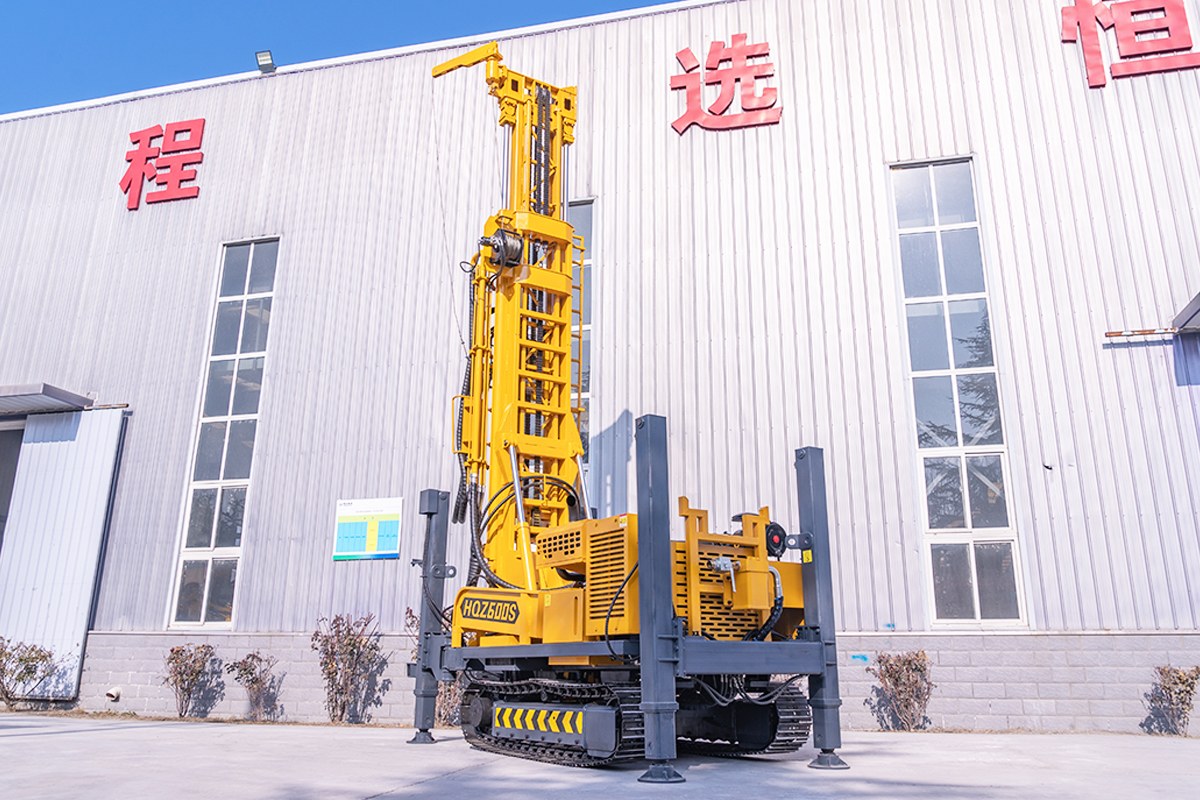

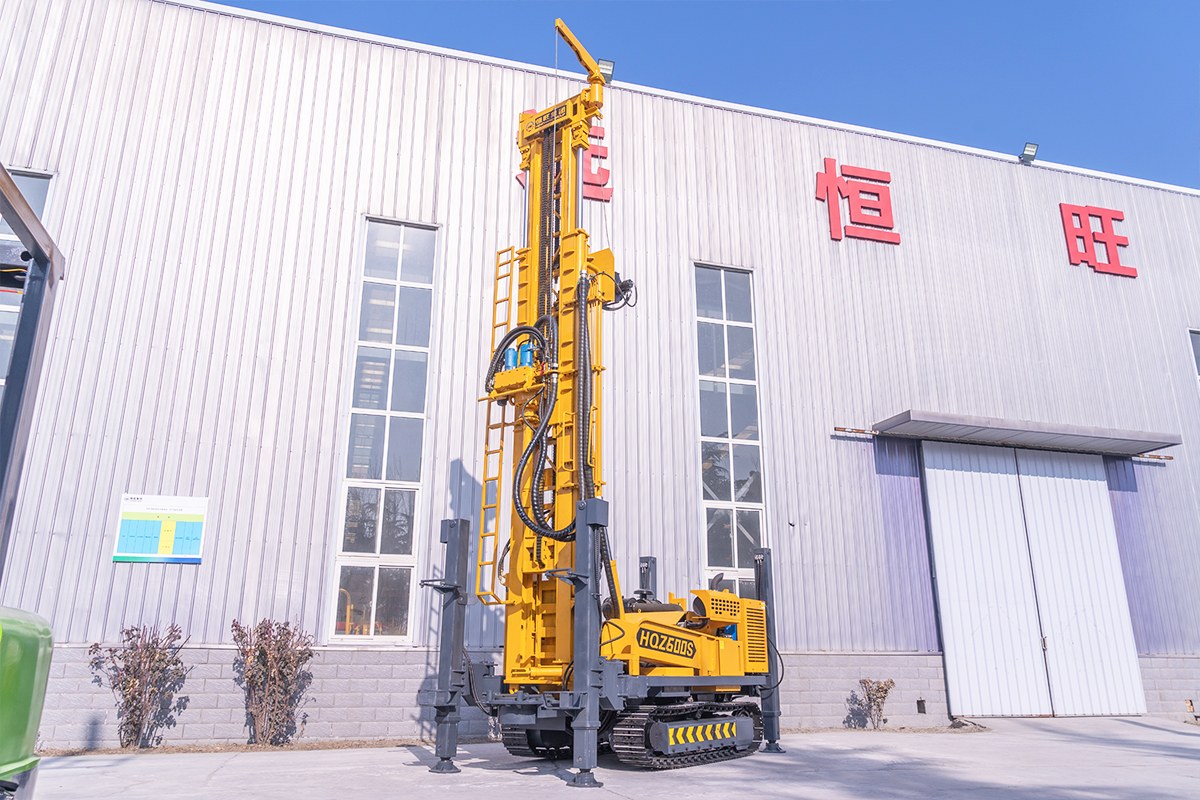

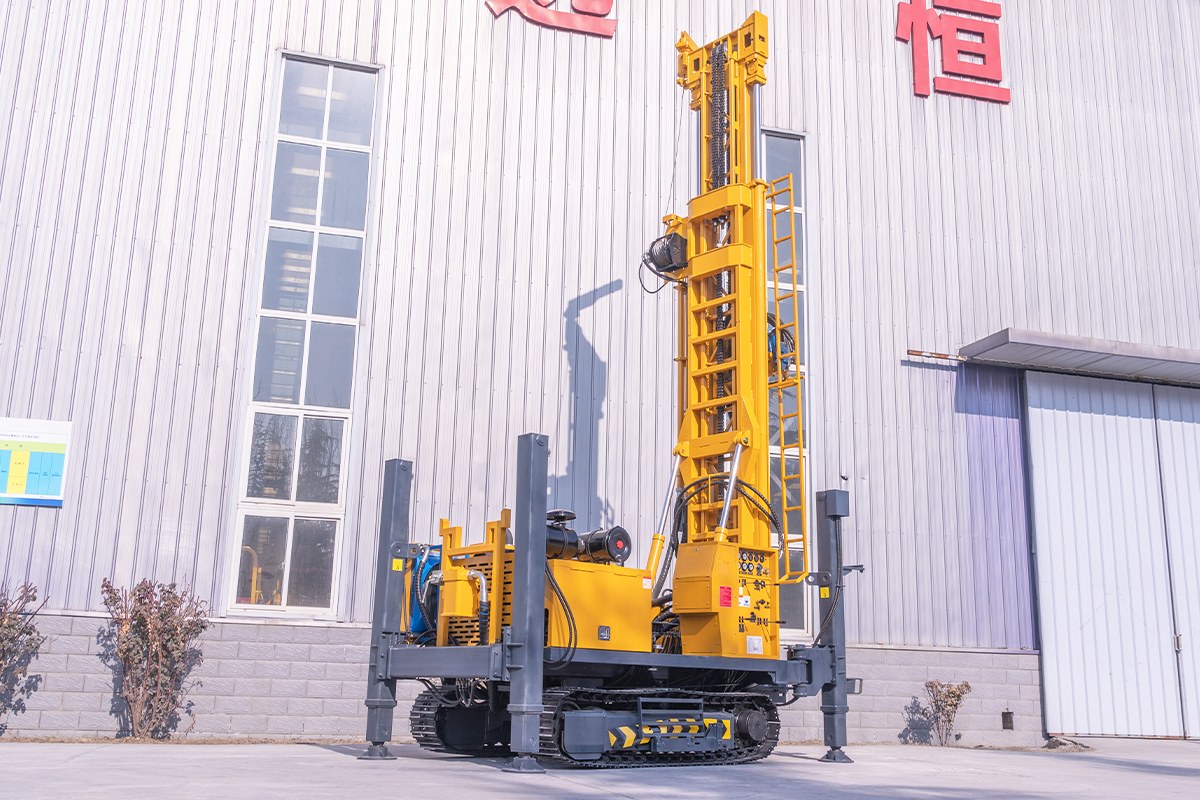

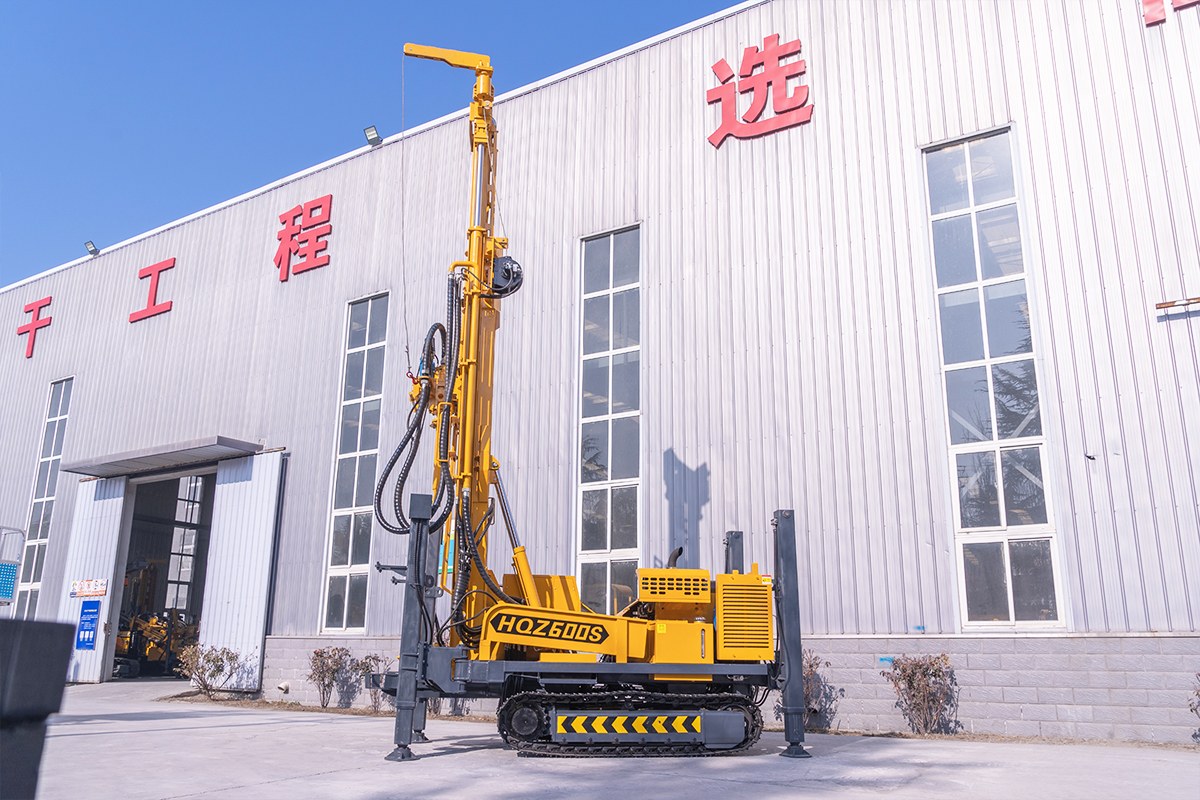

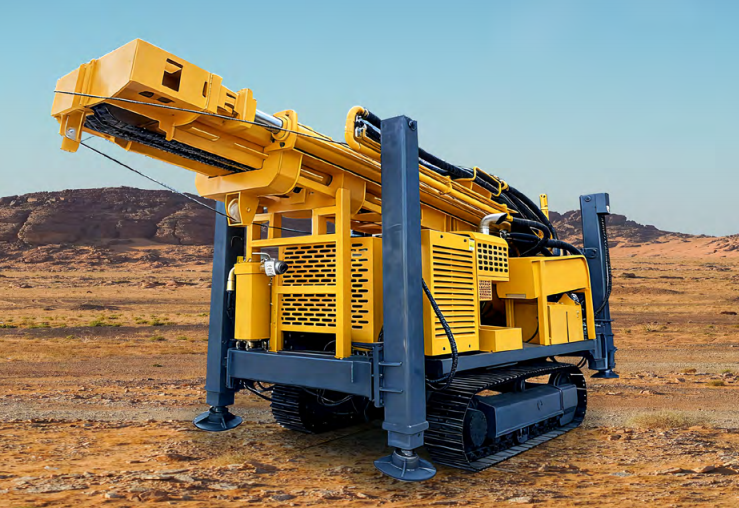

HQZ-600L Pneumatic Drill Rig
Drilling diameter: 130-350mm
Engine Power: 132Kw
Product Details
Industrial Pneumatic Drilling Rig - High-Efficiency Bored Piling & Rock Drilling Equipment
Boost productivity with our heavy-duty pneumatic drilling rig. Features millimeter-level precision, wireless remote control, and all-terrain adaptability. Low energy consumption. Get a free quote now!
| model | HQZ-600L | |
| tower | 6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-350 | mm |
| Drilling depth | 600 | m |
| One-time advancement length | 6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 132 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-42 | m³/min |

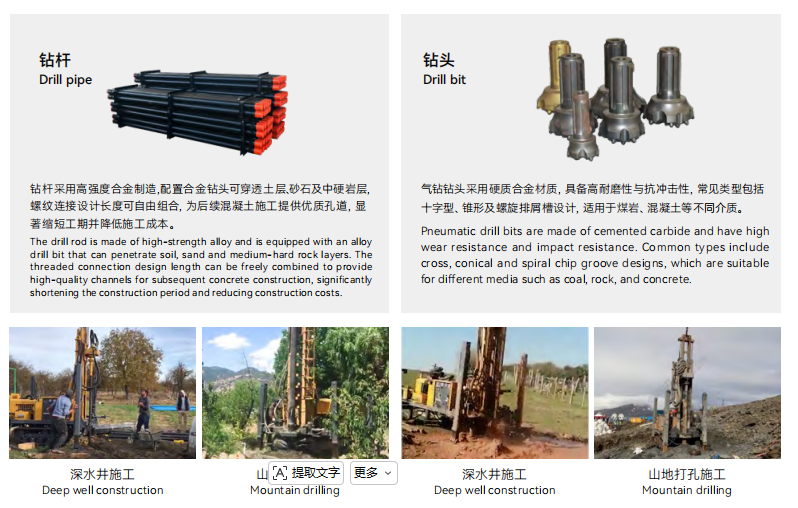

| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 28 | T |
| Swing speed | 45-115 | rpm |
| Rotating torque | 9000-11000 | N.m |
| Dimensions | 6000*2200*2950 | mm |
| weight | 12 | T |
PRODUCT ADVANTAGES
01 High work efficiency
The pneumatic drill rig can significantly speed up drilling and greatly shorten project cycles compared to traditional manual drilling methods.
02 Higher accuracy
Through the precise control system of the pneumatic drill rig, the drilling depth and position can be precisely controlled at the millimeter level, ensuring that each drilling operation strictly meets the design specifications.
03 Reduce labor costs
The pneumatic drill rig can be paired with a remote control to achieve remote operation and automate the drilling process, which can greatly reduce the demand for manpower and lower labor costs.
04 Improved security
The pneumatic drill rig reduces the risk of direct manual operation, especially when handling large or heavy materials, and improves the safety of the construction site.
05 Environmental protection and energy saving
The pneumatic drill rig is driven by compressed air, which reduces noise pollution and fuel consumption, and is more in line with the concept of green environmental protection.
06 Highly adaptable
The pneumatic drill rig is able to adapt to different terrain conditions and construction environments, including but not limited to plains, mountains and other complex terrains.
