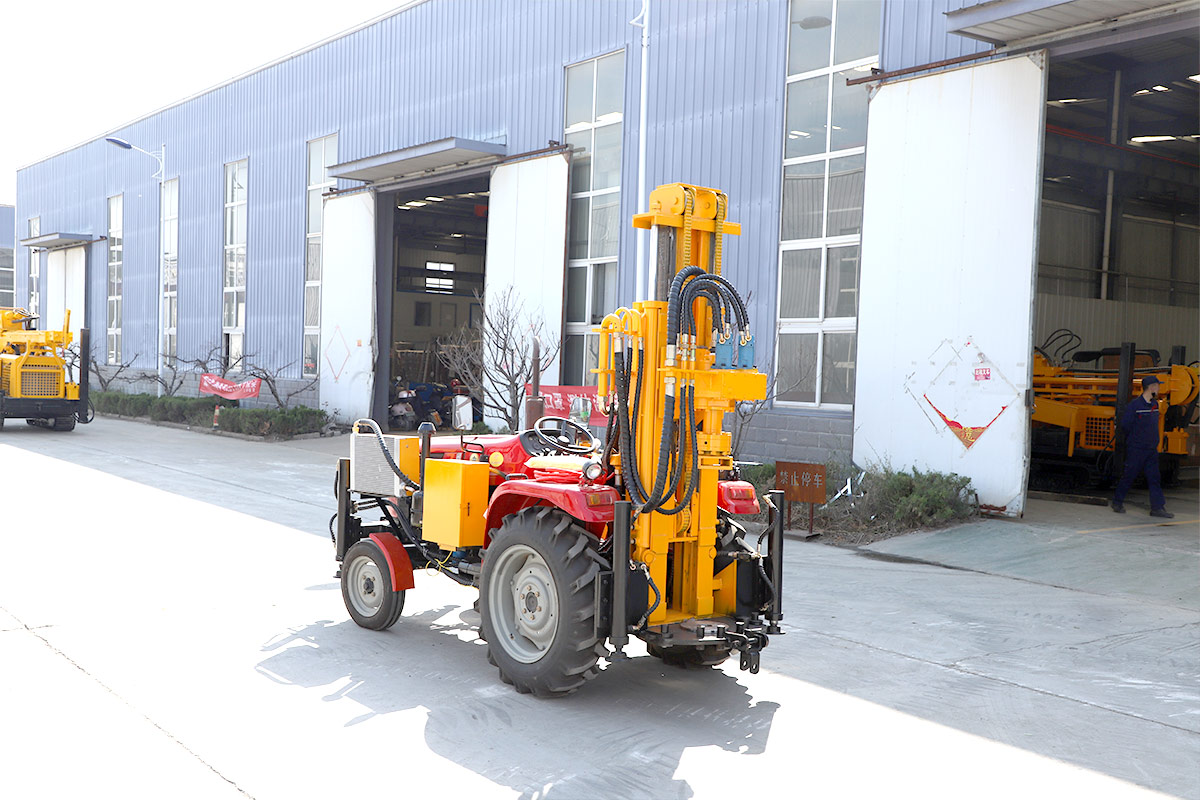

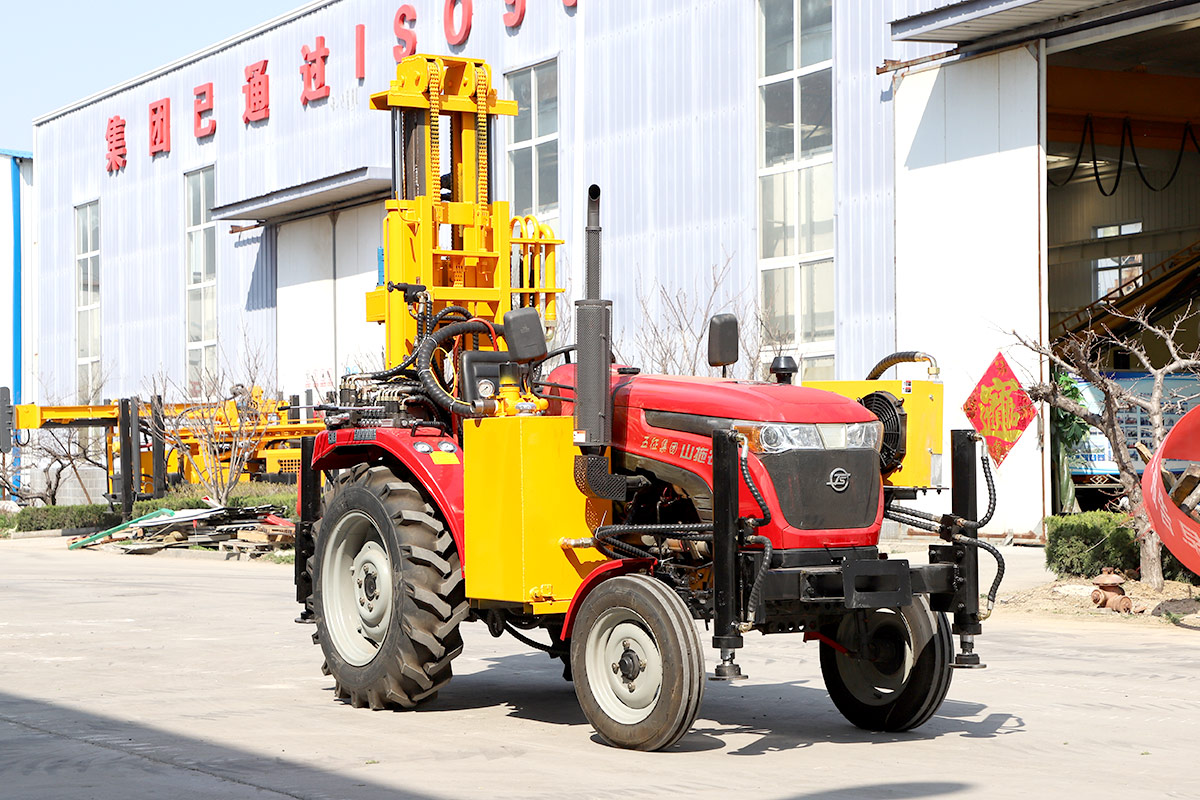

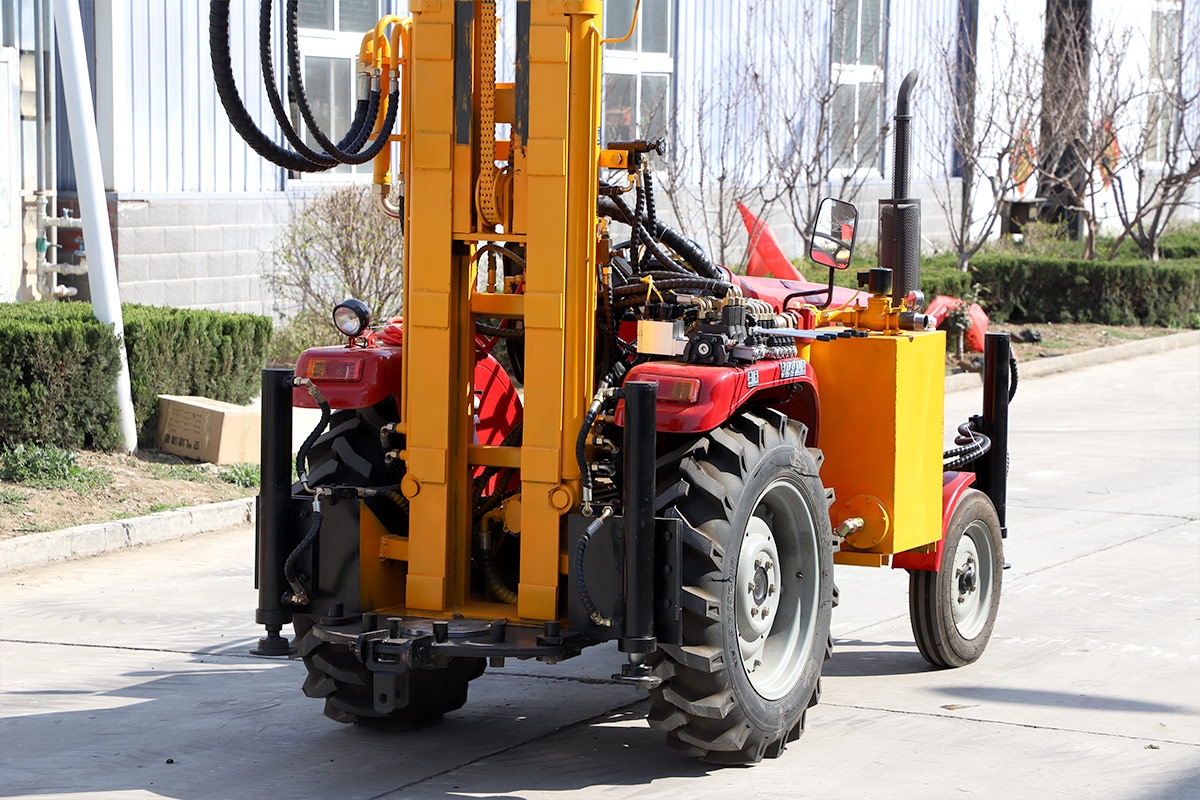

TQZ-260 Pneumatic Drill Rig
Drilling diameter: 130-254mm
Engine Power: 50Hp
Product Details

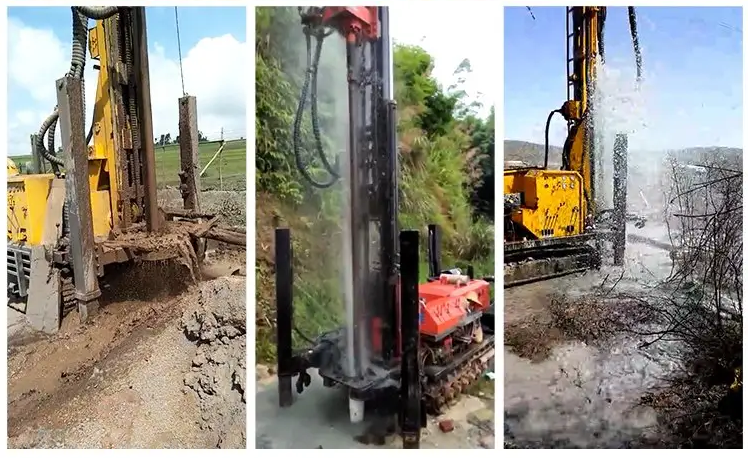

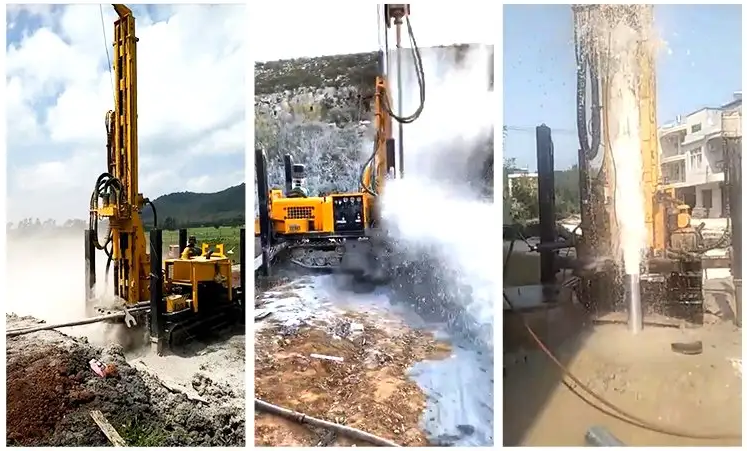

Suitable for industrial, civil drilling and geothermal drilling projects.The main feature of pneumatic drilling rigs is strong power, and the efficiency is 10 to 15 times that of ordinary hydraulic wells.
Industrial Pneumatic Drilling Rig - High-Efficiency Bored Piling & Rock Drilling Equipment
Boost productivity with our heavy-duty pneumatic drilling rig. Features millimeter-level precision, wireless remote control, and all-terrain adaptability. Low energy consumption. Get a free quote now!
Main features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Tracked chassis improves off-road performance;
3. The body is compact and easy to transport.
Parameter:
Model | TQZ-260 |
Overall weight (T) | 4 |
Dimension (mm) | 3800*1700*2700 |
Drilling diameter (mm) | 130-254 |
Drilling depth (m) | 260 |
One-time advance length of the drill (mm) | 1500 |
Traveling speed (km/h) | 30 |
Climbing capacity (max) | 25° |
Minimum ground clearance (mm) | 250 |
Working Air Pressure (mpa) | 1.7-2.5 |
Air consumption (m3/min) | 17-31 |
Main machine power (HP) | 40 |
Rotation speed (pm) | 40-65 |
Rotary torque (Nm) | 4000—4700 |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
